NU2 Systems SPS-9000 power supply

May 6, 2019
Simplify Access Control installation & support with Smart Power Supply Innovation

The NU2 Systems SPS-9000 is an innovative quad output, field programmable power supply. Four outputs provide 4 AMPS each of either 12VDC or 24VDC power and are protected via auto-recovery Digital Circuit Breakers (DCB). No fuses! Program and troubleshoot via the free SPS-9000 app from mobile/Bluetooth devices or remote Web browser. On board display provides countless status parameters. No need to use volt or amp meters!

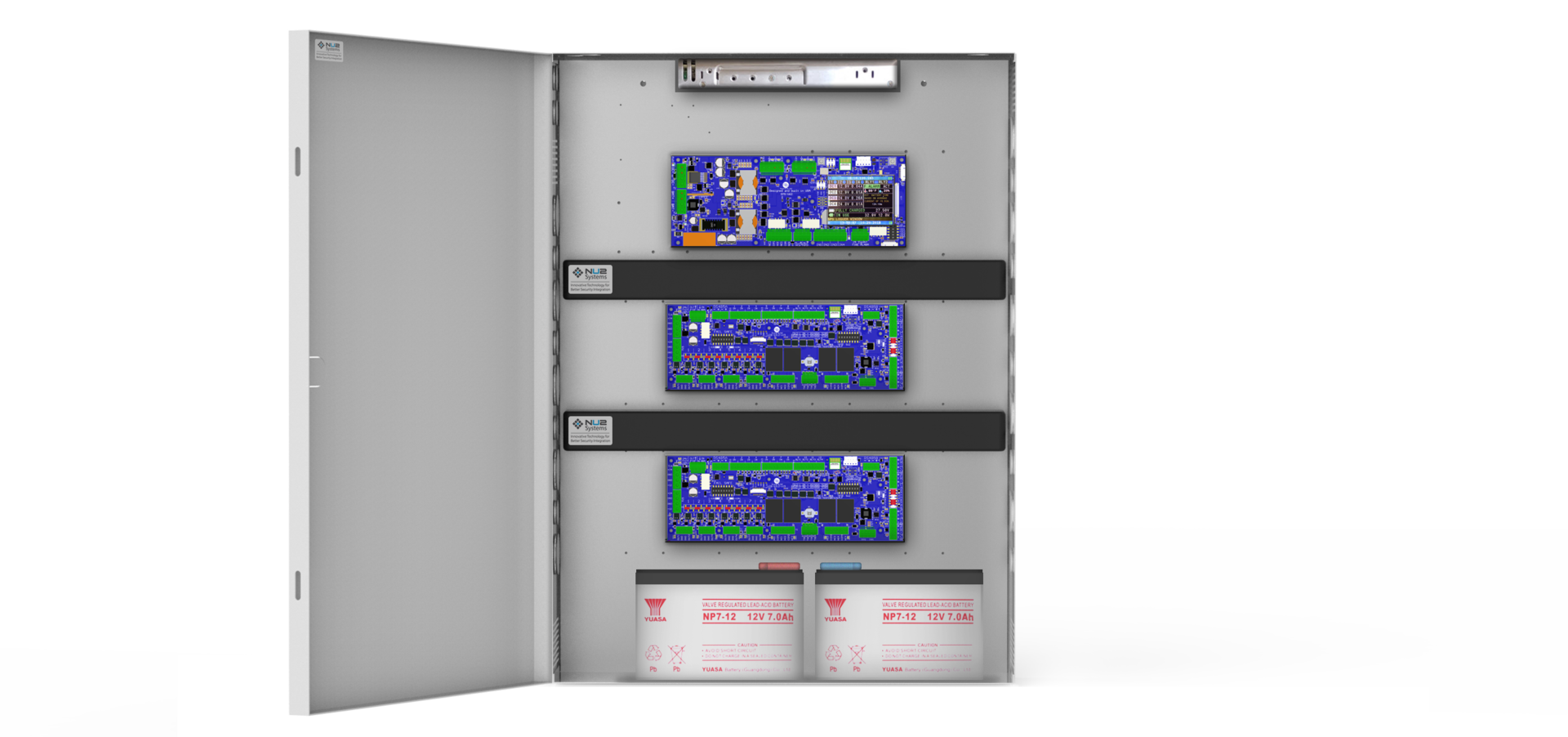

Over 150 field status parameters such as: voltages, currents, temperature, and humidity viewed and addressed locally and remotely. Smart battery charge/discharge including: reverse polarity, battery mismatch, Low Battery Disconnect (LBD) and Selective Load Shedding (SLS) are included. Battery State of Health (SOH) and Endurance Capacity (EC) are calculated and displayed in HH:MM. Two programmable relays, flexible fire alarm disconnect and onboard OSDP compliant RS-485. The SPS-9000 is connected to the NU2 Universal Interface Board (UIB-848) via RS-485 for control of electrified lock power distribution, monitoring and management.

The UIB-848 provides fuse-less power to eight (8) electrified locks. Each lock output is configured for 12V/24V and Fail Safe/Secure. Four dry contact relays (10A) are included as well as eight (8) managed and protected 12V/24V outputs for REX motion. Multiple dual color LEDs aid installer efforts.

NU2 Systems  |  www.nu2systems.com  |  [email protected]  |  914.233.1400
