VIVOTEK Releases Indoor 3-Axis Fixed Dome Network Camera

Dome network camera linked with PIR for integrated alarm
Oct. 1, 2007
2 min read

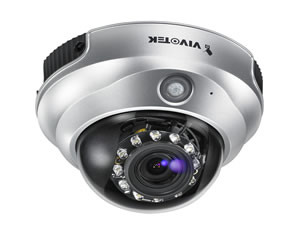

The VIVOTEK FD7131 is a full-featured 3-axis fixed dome network camera, designed for indoor surveillance. It comes with a wide-angle, vari-focal lens, allowing you to have a wide open view for maximum coverage. With the sophisticated 3-axis mechanical design, it offers a very flexible, easy hardware installation for either ceiling or wall mount.

To prevent false alarms, it is also equipped with a PIR (Passive Infrared) sensor, which can detect motion causing temperature changes in the infrared range emitted by surrounding objects. Embedded with VIVOTEK's VVTK-1000 SoC, it simultaneously delivers dual streams with different resolutions up to 30fps in VGA resolution upon separate multimedia devices for real-time viewing. Additionally, by offering more advanced features such as 3GPP mobile surveillance, built-in 802.3af compliant PoE, two-way audio (*), FD7131 allows users to build up a cost-effective IP surveillance system for various indoor applications with ease.

Features * 3-axis Mechanical Design to Adjust Lens Position for Ceiling and Wall Mount Installation
* Wide Angle Vari-focal Board Lens
* Built-in PIR Sensor for Motion Detection
* Bulit-in White-Light Illuminators for Low Light Condition
* Real-time MPEG-4 and MJPEG Compression (Dual Codec)
* Supports Simultaneous Dual Streams (MJPEG/MPEG-4 up to 30fps in VGA Resolution)
* Supports 3GPP Mobile Surveillance
* Built-in 802.3af Compliant PoE (Power over Ethernet)
* Supports Two-way Audio (*)
* Free-bundled 16-CH Recording Software

The features with (*) will be available later through firmware upgrade.
