The Securitron M380E Series Maglock with EcoMag technology from Assa Abloy Electronic Security Hardware delivers 80% reduction in energy consumption as compared to the previous M380 series. Door prop sensing allows the magnet to de-energize the coil when the door is held open for extended periods, dropping the power draw as low as 20mA at 12V. Optional integrated PIR Request to Exit is an available option, providing the flexibility to customize as needed.
With up to 80% decreased energy consumption, and biodegradable packaging insert, the Securitron M380E is the most eco-friendly magnalock available today.
Updated strike plate mounting template makes for faster, easier installation.
Product Features
- Sustainability documentation
- Energy, efficient, low power usage
- Automatic dual-voltage-no field adjustment required
- LED Indicator shows the lock is secure, open, or has an incomplete bond
- Tamper Switch sends an alarm output if the cover is removed and is selectable to NO or NC
- Available integrated BondSTAT and Door Position Switch
- Autosensing dual voltage with microprocessor technology
- Rust resistant — all ferrous metal surfaces plated for durability
- Adjustable automatic relock timer (0 to 30 seconds) BD and BDX Only
- Wire chamber anti-tamper switch
- Size optimized for use with door closers
- Strike plate mounting template provides the easiest install for out-swing doors
- MagnaCare® lifetime replacement, no fault warranty
Securitron M380EBD: The Securitron M380EBD offers built-in smart voltage sensing microprocessor controls Securitron’s integrated patented BondSTAT, tamper sensor as well as door position status monitoring. The aesthetics of the M380EBD are refined enough for the most discriminating designer openings. It also offers the fastest, easiest, most secure installation of any bracket mount maglock.

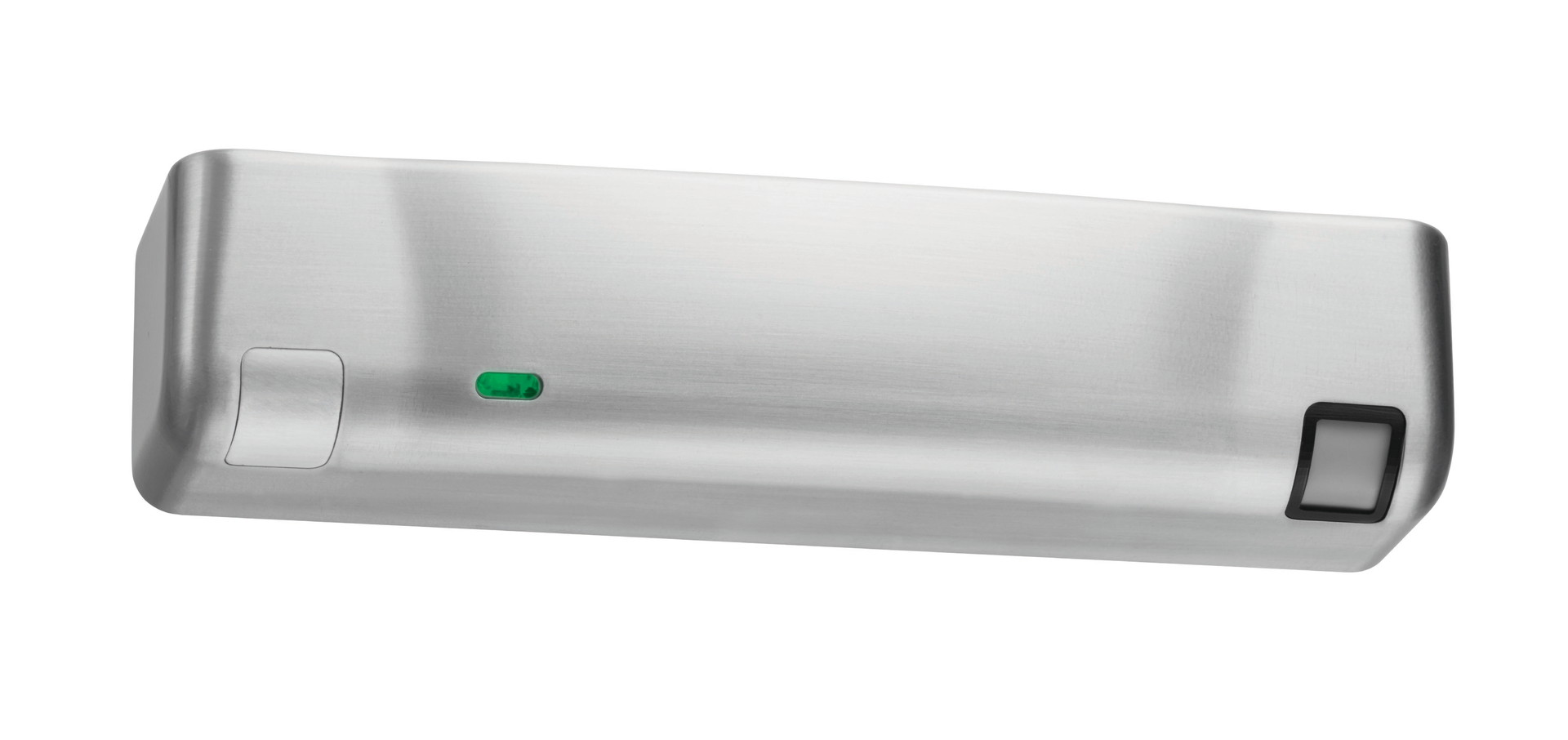

Securitron M380EBDX: Everything included in the Securitron M380EBD model plus integrated request to exit (REX) provides optimum coverage for detecting an approaching person so the door unlocks for egress. The configurability of the passive infrared (PIR) beam allows the detection area to be tailored to your environment, for better accuracy.
Specifications:
- Holding Force: 600 lbs [272k]
- Shipping Weight: 6.5 lbs
Dimensions:
- Magnalock: 10"L x 2-7/16"D x 2-3/16"H
- Strike: 7-7/16"L x 9/16"D x 1-5/8"H
