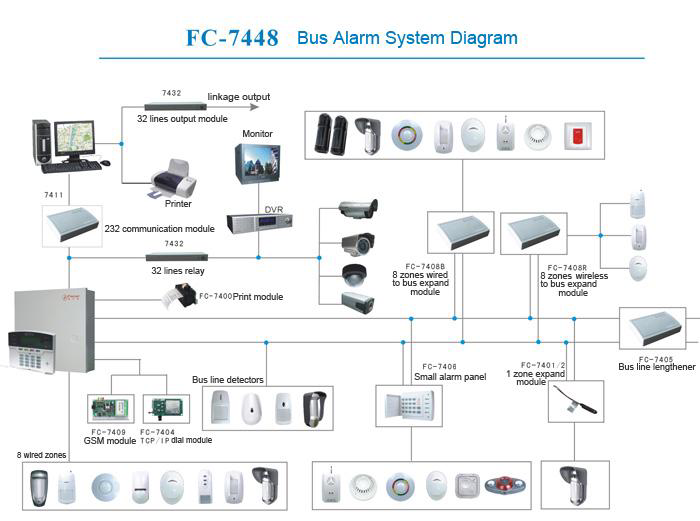

The system consists of FC-7448 8 wired and 240 bus zones and manages the whole system via management software. The system include public area alarm detector, office zones alarm detectors on each floor, rest zones, meeting rooms, safety detectors and sensors. It will dial preset phone numbers and show the detailed address when an alarm occurrs.
The system can also set multiple defense zones, independent arm/disarm functions etc. FC-7448 system management center can work with small panels to enable self-area management and work with extension modules as well. Alarm signals from public area such as corridor, rest zones will be reported to FC-7448 via bus line directly. The system will report alarm information to PC via RS232, or work with GSM module, TCP/IP module to send via internet. The system can be used in community security, building security, enterprise security, school security, fair security etc. Total bus line length is 2.0km (1.5mm), can connect to 15 keypads with 8 independent zones. It is with 200 personal operation password can work with various zones extension modules and wireless/wired to bus module etc. It support Contact ID, Ademco 4+2 protocol.
