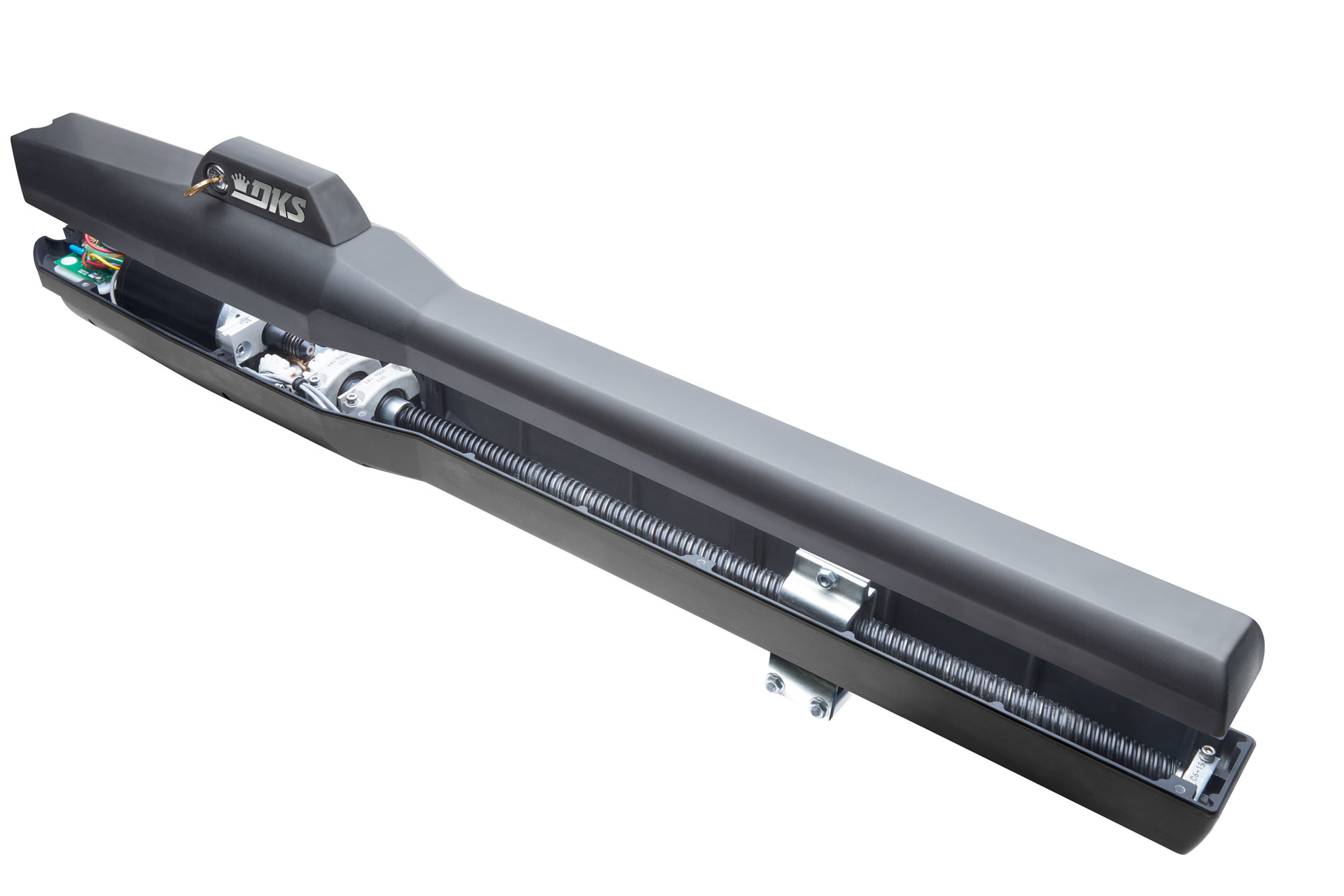

DoorKing 6006 Swing Gate Actuator

April 22, 2020

The DoorKing model 6006 is a versatile swing gate operator system that can operate gates up 1600 lbs., or up to 18 feet in length, making it ideal for both residential and light-duty commercial applications.

The actuator can be left- or right-hand mounted and can be set for pull to open or push to open operation. The 6006 actuator operates on 24 Volt DC power and features built in limit switches that precisely control the start / stop speed, and travel of the gate.

The microprocessor-based electronic control board provides many advanced features typically not found in operators in this class. The control box can be powered by 120 Volt AC, which is then converted to 24 Volt DC to power the actuator and control board. Two 120 Volt control boxes are available to choose from, Deluxe and Standard. The Deluxe control box includes three 120 VAC outlets to power accessory transformers.

Both include 3.5 Ah (Amp Hour) batteries for back-up power operation. You can also select our Solar Powered control box, which eliminates the need for high voltage power runs.

The 6006 is American made; designed and built at DoorKing’s manufacturing facilities in Inglewood, Calif.
