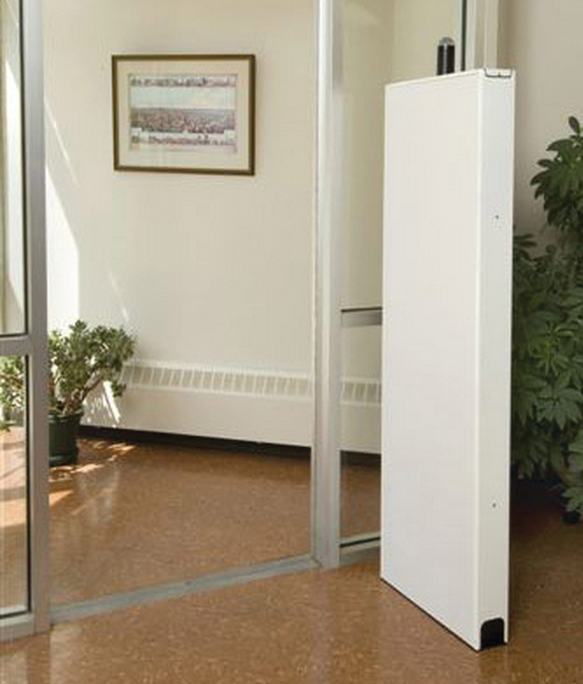

The Jamison Thin RFID Portal series offers space-saving features in an aesthetically-pleasing unit suitable for light warehouse, retail, data center, and office environments. The stands come in 60-inch and 78-inch models, offer a variety of mounting configurations, and can be used as free-standing, wall-mount, or can mount to the floor against a wall.
Features:
- Small footprint
- One-sided or two-sided units available
- Side trims and top available in colors
- Optional light dome and motion sensor
- ABS covers available in white or black
- Power/IP connectors can be placed at the top or bottom on either side of the unit
Specifications:
- Standard Construction: 12-gauge steel frame with 18-gauge steel side trim & top
- Standard Finish: Powder-coated in colors or chrome, optional finishes and Stainless Steel
- Dimensions (Standard): Width: 20", Depth: 5.9", Height: 78"
- Footprint with Base Plate: 6" x 24" (Wall-Hugger Unit 6" x 20" Base)
- Covers: White or Black ABS plastic material
- Weight: 68 lbs. (without RFID equipment)
- Standard Reading Height: up to 96" (depending on equipment)
- Maximum Antenna Positioning Height: 72"
- Power: Standard 110 – 125 A/C 60HC
- LAN Standard Ethernet Port, RJ45 Connector, 802.11 optional
- Laser-Cut Bracketing: Drilled for mounting all major RFID Readers & Antennas
