D1xS2H and AlertAlarm Fire Warning Signals from E2S

Nov. 16, 2022
UL464 and UL1638 approved for use in fire and gas detection systems

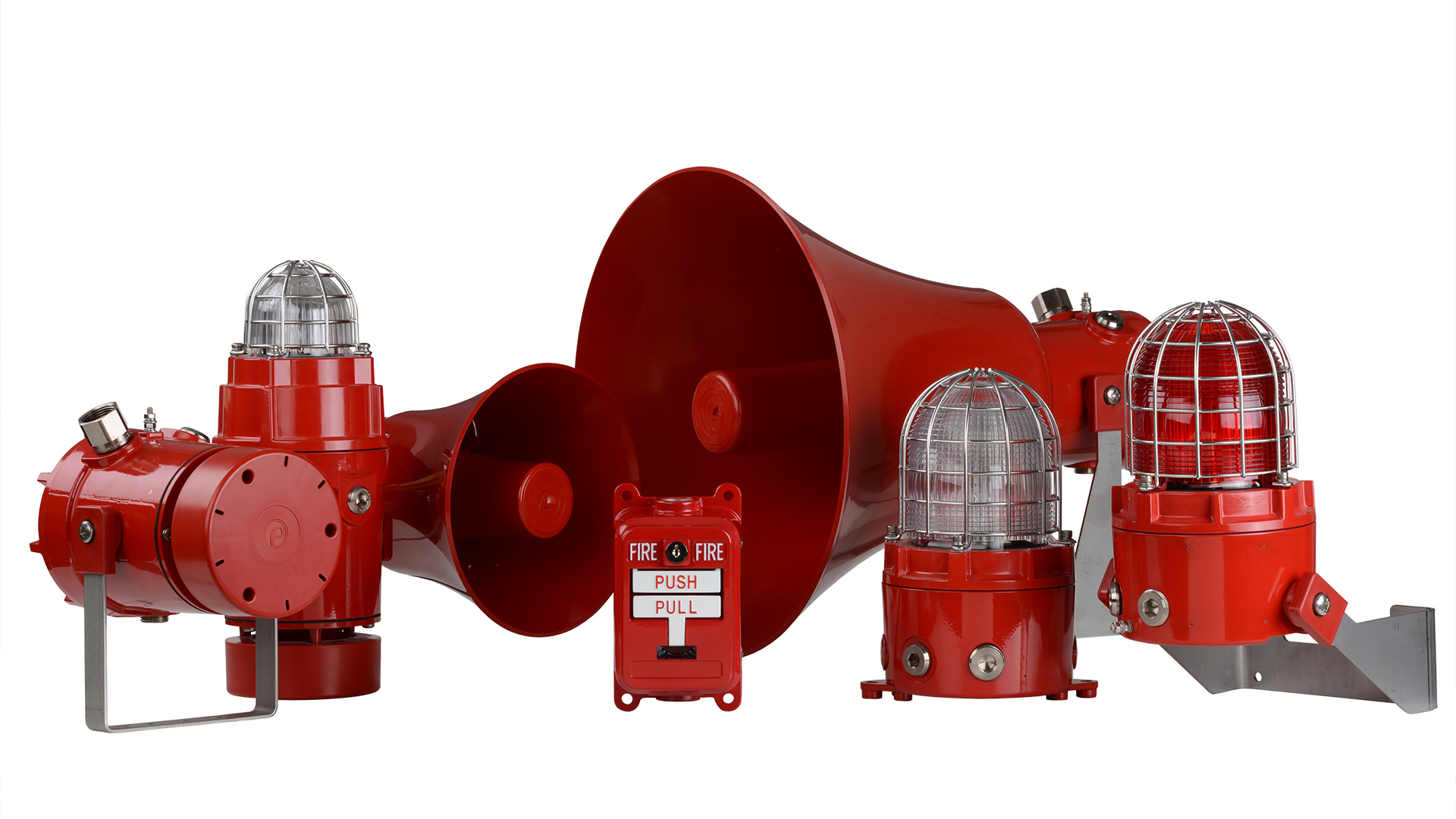

E2S Warning Signals has released UL464 and UL1638 approved warning signals for use in fire and gas detection systems suitable for hazardous areas, industrial, marine and harsh environments.

The D1xS2H is housed in a Type 4/4X, IP66 marine grade, corrosion proof aluminum enclosure. Featuring sound output levels up to 127 dB(A) and 64 alarm tones, each of the 4 stage/channels can be remotely activated. Auto-synchronized on multi-alarm horn systems, the Class D amplification provides the highest sound pressure level available for Class I Division 1 notification with a choice of two power modes. The threaded flameproof joint, multiple cable entries and duplicated, pluggable termination simplifies both installation and routine maintenance. The 24Vdc version is approved to UL464 for public mode fire alarm use and the 100-240Vac version for general signaling use. They are SIL1 compliant to IEC 61508 (2010). The D1xS2H also carries global approvals: UL, cUL and ULC for Class I Div 1, Zone 1, IECEx and ATEX Zone 1, 2, 21 and 22 for use in hazardous area explosion proof signaling applications.

The AlertAlarm horn sounder range is globally approved for fire, marine and general signaling applications. Featuring 64 alarm tone frequencies and 4 remotely activated stages/channels, it is approved to UL464 and EN54-3. The associated combined audible and visual signals from the AlertAlight range are approved to UL464, UL1638, EN54-3 and EN54-23. The AlertAlarm and AlertAlight family are available in four physical sizes with outputs from 110 to 124dB(A). Their flame-retardant ABS and PC enclosures are lightweight and impact resistant. Low current consumption and high SPL in an outdoor rated enclosure ensure suitability for all applications including fire, security and process control. The AlertAlight beacons are available with Xenon or LED light sources.
