    Linear Adds Two DX Format Miniature Transmitters

    Oct. 20, 2005
    DXT-601 features one button and one code; DXT-604 offers four buttons and five codes

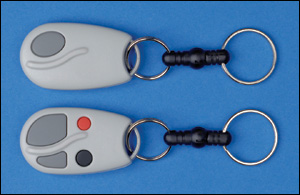

    Linear's new DX format transmitters are offered in a single button/single code format, as well as a version featuring four buttons and five codes.
    Linear's new DX format transmitters are offered in a single button/single code format, as well as a version featuring four buttons and five codes.

    For use in a wide range of non-supervised, wireless remote control applications, Linear has introduced two DX format miniature transmitters. The DXT-601 is a one-button, single-code model. The DXT-604 features four buttons and five codes - each button sends a unique signal, plus pressing the two large top buttons in tandem sends a fifth signal. Both are supplied with two, long-life, 3-Volt coin cell batteries and a two-part key-ring. Linear's digital DX format offers over one million possible codes. Linear precodes all DXT transmitters at the factory, so no field configuration is needed.

    Each transmitter can be programmed into any channel of the desired DX digital receiver. "Learning" the transmitter's code is easy. Once the radio controls are set up, transmitters can signal and trigger receiver activation when their buttons are pressed for a minimum of two seconds and a maximum of 10 seconds. Compatible DX receivers include the one-channel DXR-701 receiver, the two-channel DXR-702 receiver, and the DVS-1200, DVS-2400, Dual 824, and PERS-2400 consoles.

    Linear is a pioneer in engineered radio frequency (RF) products and is a major supplier of wireless residential security systems, intercoms, garage door operators, gate operators, short and long-range radio remote controls, and medical/emergency reporting systems. Current Linear brands include AirVac central vacuum systems, ChannelPlus whole house audio/video distribution systems, Linear Access entry and access controls, Linear Security emergency reporting and security systems, M&S Systems Xtreme digital music systems, music/communications systems, and speaker systems, and OpenHouse structured wire systems.

    In recent years the company, through acquisition, expanded into consumer electronics, home entertainment products, and structured wiring systems for the builder market. In addition to the aforementioned brands, other recent acquisitions have included: ELAN Home Systems multi-room audio/video equipment; Imerge Internet-connected, hard disk-based audio products and media appliances; Niles whole house audio/video distribution and integration products; OmniMount audio/video equipment mounting solutions; Panamax power conditioning products for home entertainment and home office electronics; SpeakerCraft and Proficient Audio Systems speakers and electronics; Sunfire home audio and home theater electronics; and Xantech infrared remote controls for home entertainment systems. Linear is online at www.linearcorp.com.
